Description

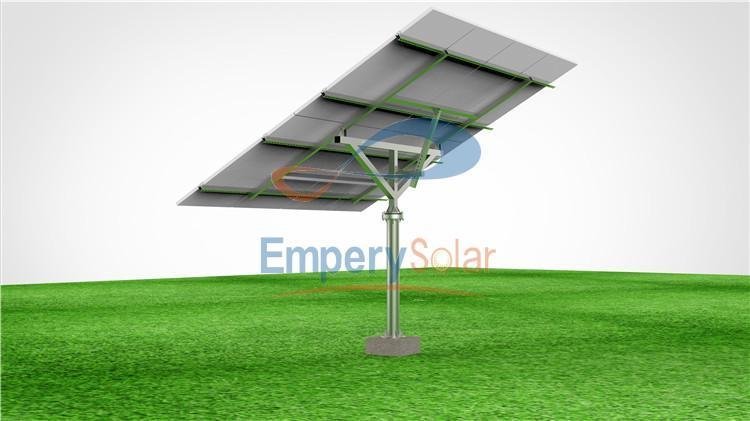

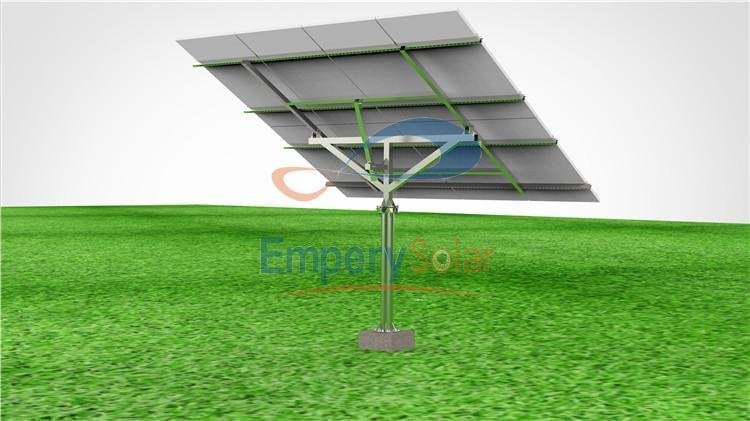

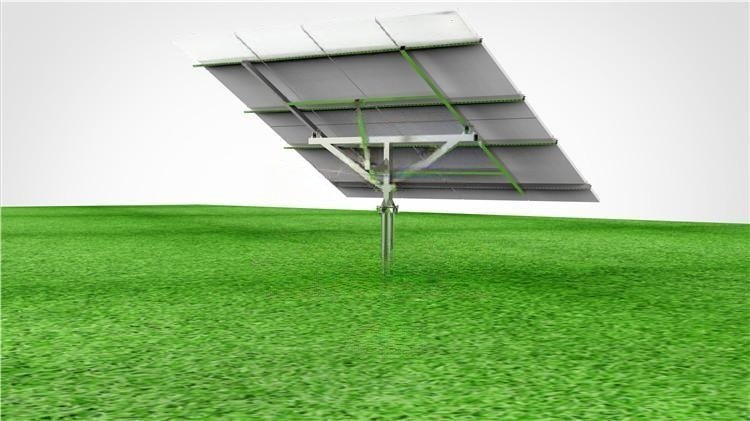

Kom Solar Pole Mounting System is the perfect solution when maximum flexibility is required in the installation. A single, free standing support pole can accommodate 4, 6, 8 or 10 panels.
Any number of poles can be installed to grow the system. Poles can be rotated to the optimum orientation, and the system of panels on each pole can be turned to any one of five angles: 10, 20, 30, 40 or 50 degrees to maximise power generation.
Install site：Open ground
Tilt Angle：10~60deg
System Height：<5m
Max Wind Speed：<60m/s
Snow Load：<1.4KN/㎡
Standard：AS/NZS 1170 and other international Standard
Material：High Class Aluminum alloy Al6005-T5 & Stainless steel 304 & Hot galvanized steel Q235
Color：Natural or optional
Anticorrosive：Anodized aluminum & Hot galvanized
Warranty：15 years warranty and 20 years service life
