Description

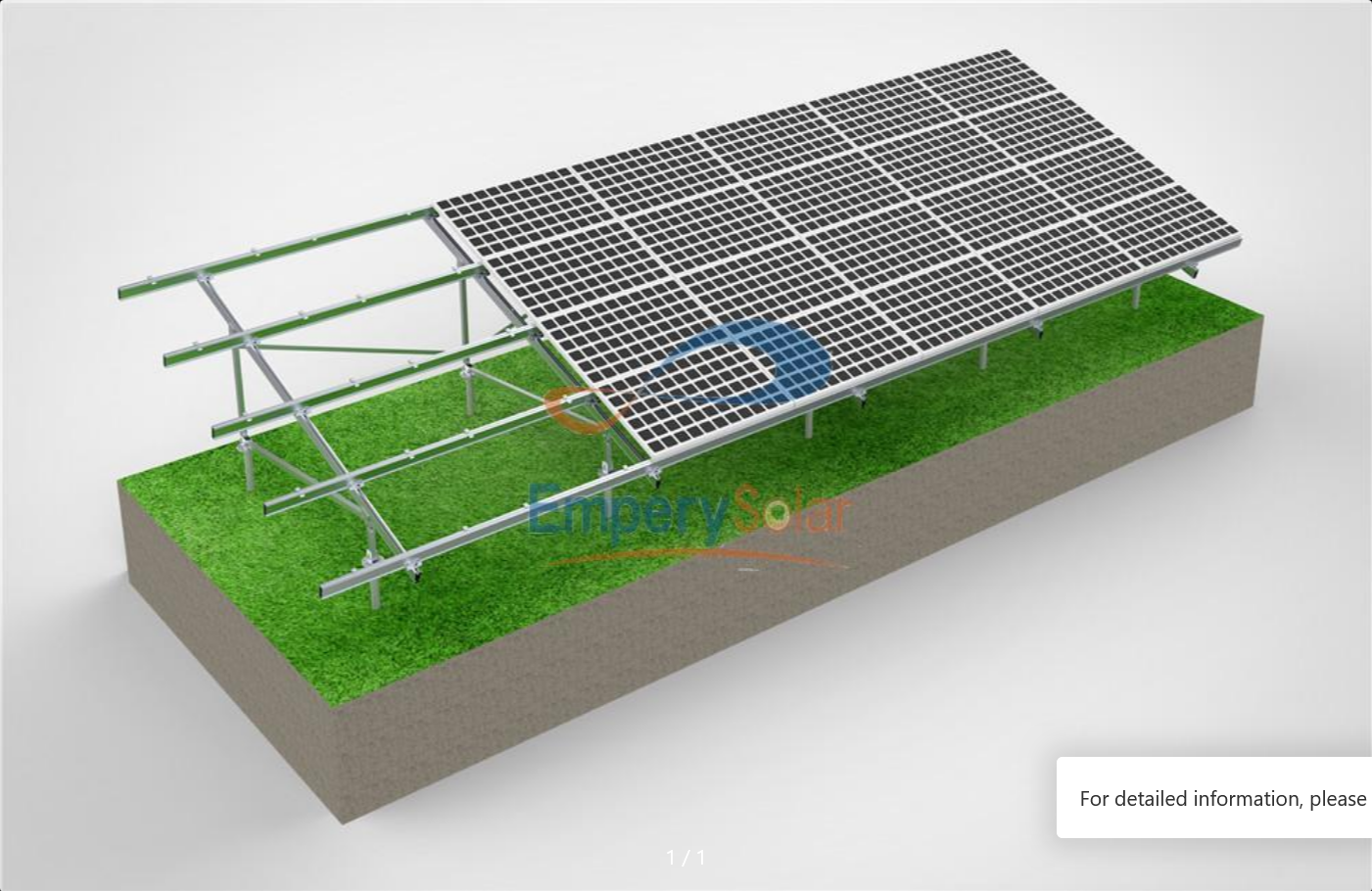

Empery adjustable angle AL-Ground System is made of 100% aluminum for mounting on concrete strip foundations or ground screw. It is light and strong, graceful and smart.In our adjustable angle AL-Ground System, Not only the east-west direction can be adjusted, the column is also designed for adjustable,the tilt angle can be adjusted between 15 degree,and the Beam is pre-assembled, the size of the leg and the B-Rail is plan and machined on factory to eliminate the weld and cut on installation site to save your install time and cost.
Installation Site: Open field
Wind Load: Up to 60m/s
Snow Load: Up to 1.4KN/m
Applicable Module: Framed or Frameless
Module Orientation: Vertical or horizontal
Main Material: 100% Anodized Aluminum AL6005-T5
Fastener Material: Stainless Steel
● Easy Installation
Parts have been high pre-assembly on factory to save your installation time.
● Safety and Reliability
Check and test the structure strictly to against the extreme weather condition.
● Flexibility and Adjustable
Smart design reduce the difficulty of the installation on the most condition.
● 15-Year Warranty
Empery Solar provides a 15-years warranty for the material and structure.
