Description

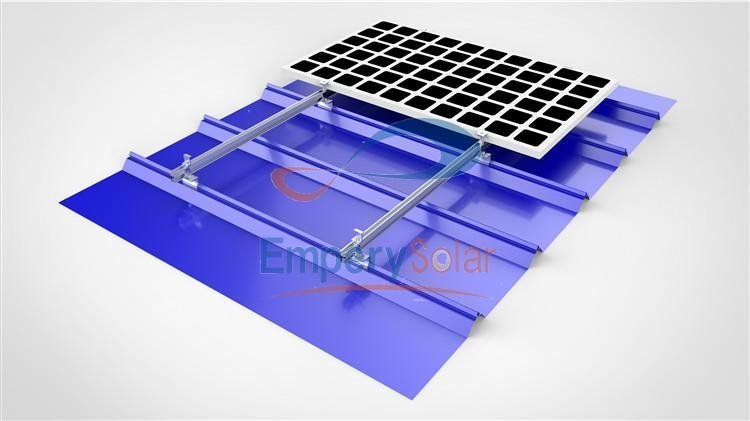

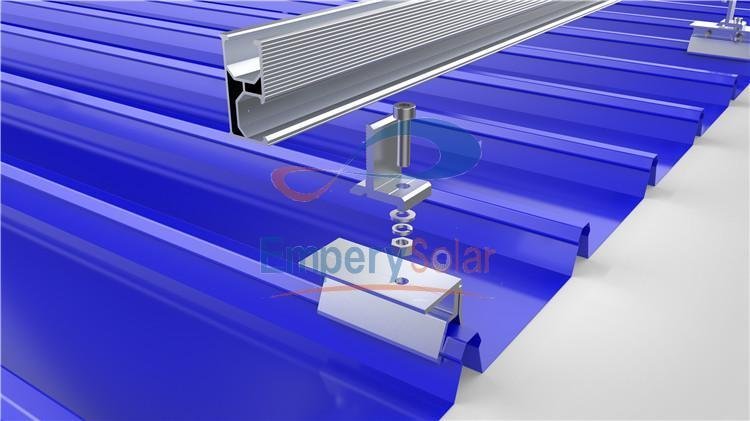

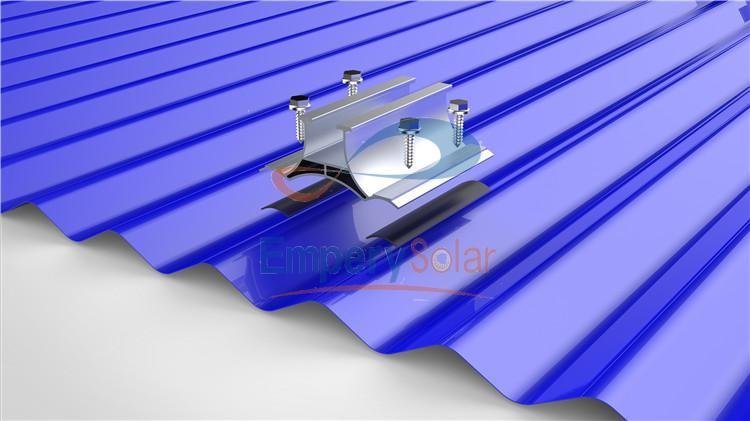

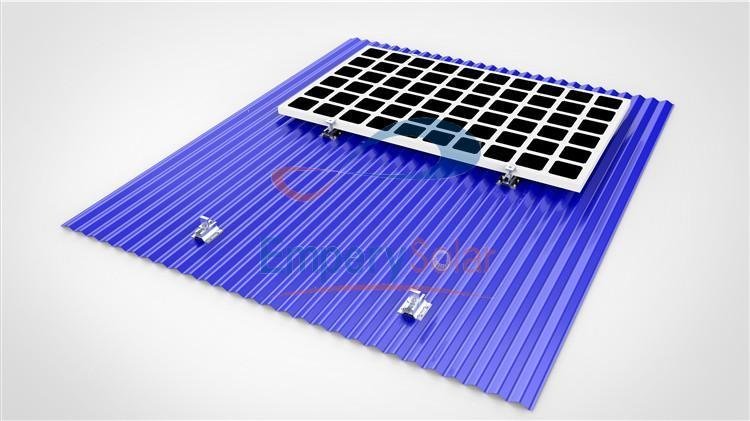

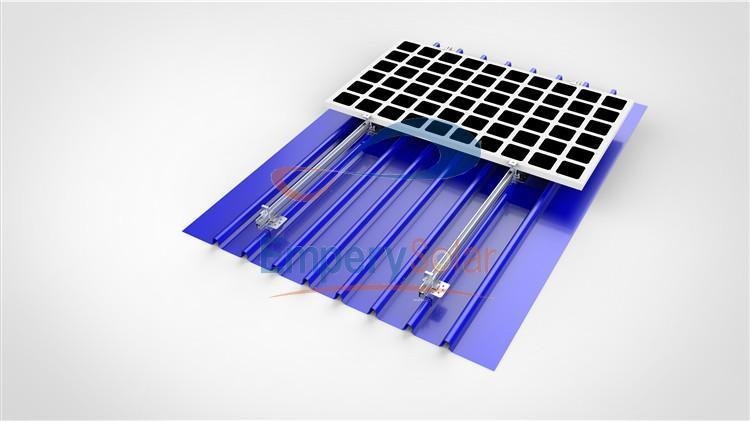

Our Metal Roof Mounting Solution provides a simple and cost-effective solution,and there have many types of metal Roof Hooksuitable for different metal roof . To simplify connection of support rails to brackets, Empery’s rails are designed to allow fixing nuts to be simply swivelled into the rails.
TECHNICAL INFORMATION
Install site: Pitched Tin Roof
Roof Slope: Up to 60 deg
Building Height: Up to 65ft (20 m)
Max Wind Speed ：60m/s
Snow Load： 1.4KN/m2
Standard： AS/NZS 1170 and other international Standard
Material： Al6005-T5 & Stainless steel 304
Color： Natural or Customized
Anticorrosive： anodized aluminum & stainless steel 304
Warranty ：15 years warranty and 20 years service life.
BENEFITS
1、Easy to install. The tilt-in module can be put into the extruded rail from the any location and can be high pre-assembly with the clamp and Roof Hookto minimize the time and cost of installation
2、Offer unmatched durability: with all structural components comprised of high class stainless steel and anodized aluminum alloy, it is designed for twenty years service life and backed by 10 years warranty.
3、Stand up to extreme weather. The Empery solar pitched roof racking system is designed to stand up to the extreme weather complied with the AS/NZ 1170 and other international structure load standard by the skilled engineer. The main support components also have been test to guaranty its structure and load-carrying capacity.
4、Provide broad installation flexibility. These systems accommodate most commercially available framed solar panels and diverse roof types, and they can scale easily from small to large, multi-megawatt installation.
